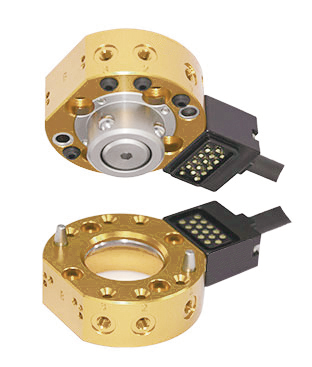

自动快换盘通过使机器人/机械手自动更换不同的末端执行器或外围设备，使其应用更具柔性。这些末端执行器和外围设备包含例如点焊焊枪、抓手、真空工具、气动和电动马达等。快换装置包括一个机器人侧用来安装在机器人手臂上，还包括一个侧用来安装在末端执行器上。快换装置能够让不同的介质例如气体、电信号、液体、视频、超声等从机器人手臂连通到末端执行器。
The automatic quick tool changer provides greater flexibility to the robots through a quick automatic change of end-effectors or peripheral equipment. These end-effectors or peripheral equipment include spot welding torches, grippers, vacuum tools, pneumatic and electric motors. The tool changer consists of a robot end to be mounted on the robot arm and a tool end to be mounted on the end-effectors. It allows such media as air, electrical signals, liquid, video, and ultrasound to be connected from the robot arm to the end-effectors.
自动快换盘通过使机器人/机械手自动更换不同的末端执行器或外围设备，使其应用更具柔性。这些末端执行器和外围设备包含例如点焊焊枪、抓手、真空工具、气动和电动马达等。快换装置包括一个机器人侧用来安装在机器人手臂上，还包括一个侧用来安装在末端执行器上。快换装置能够让不同的介质例如气体、电信号、液体、视频、超声等从机器人手臂连通到末端执行器。
The automatic quick tool changer provides greater flexibility to the robots through a quick automatic change of end-effectors or peripheral equipment. These end-effectors or peripheral equipment include spot welding torches, grippers, vacuum tools, pneumatic and electric motors. The tool changer consists of a robot end to be mounted on the robot arm and a tool end to be mounted on the end-effectors. It allows such media as air, electrical signals, liquid, video, and ultrasound to be connected from the robot arm to the end-effectors.
序号 Seri | 型 号 Model | 力矩 Nm Moment (Nm) | 转矩 Nm Torque (Nm) | 负载 Kg Load (Kg) | 锁紧力（气压0.49Mpa时） N Locking Force (N) | 自带 气路 Built-in Air Circuits | 模块扩展面数量 Number of Modular Expansion Mounting Surfaces | 温度范围°C Temperature Range (°C) |
最大耐压 Max Operating Pressure
| 位置重置 精度mm Position Reset Accuracy (mm) |
1 | LBT-AC-0005*14P1MT | 13.2 | 18 | ≤5 | 770 | 4*M5 | 1 | 0~ 60 | 0.8Mpa | ±0.015 |
2 | LBT-AC-0010*14P2*2TMT | 26.5 | 35.7 | ≤10 | 1193 | 4*M5 | 2 | 0~ 60 | 0.8Mpa | ±0.02 |
3 | LBT-AC-0010*16P2MT | 26.5 | 35.7 | ≤10 | 1193 | 6*M5 | 2 | 0~ 60 | 0.8Mpa | ±0.02 |
4 | LBT-AC-0020*112P4*2TMT | 58.6 | 80 | ≤20 | 2514 | 12*M5 | 4 | 0~ 60 | 0.8Mpa | ±0.02 |
5 | LBT-AC-0020*112P4MT | 58.6 | 80 | ≤20 | 2514 | 12*M5 | 4 | 0~ 60 | 0.8Mpa | ±0.02 |
6 | LBT-AC-0040*18P2*2TMT | 216 | 226 | ≤40 | 7497 | 8*PT1/8 | 2 | 0~ 60 | 0.8Mpa | ±0.02 |
7 | LBT-AC-0070*18P2*2TMT | 328.5 | 451 | ≤70 | 9973 | 8*PT1/8 | 2 | 0~ 60 | 0.8Mpa | ±0.02 |
8 | LBT-AC-0070*16P4*2TMT | 328.5 | 451 | ≤70 | 9973 | 6*PT1/8 | 4 | 0~ 60 | 0.8Mpa | ±0.02 |
9 | LBT-AC-0120*110P2*2TMT | 842 | 1200 | ≤120 | 15407 | 10*PT1/8 | 2 | 0~ 60 | 0.8Mpa | ±0.02 |
10 | LBT-AC-0120*18P4*2TMT | 842 | 1200 | ≤120 | 15407 | 8*PT1/8 | 4 | 0~ 60 | 0.8Mpa | ±0.02 |
11 | LBT-AC-0230*19P2*2TMT | 2260 | 2245 | ≤230 | 31458 | 9*PT3/8 | 2 | 0~ 60 | 0.8Mpa | ±0.02 |
12 | LBT-AC-0230*118P2*2TMT | 2260 | 2245 | ≤230 | 31458 | 18*PT1/8 | 2 | 0~ 60 | 0.8Mpa | ±0.02 |
13 | LBT-AC-0230*16.2P4*2TMT | 2260 | 2245 | ≤230 | 31458 | 6*PT1/8 2*PT3/8 | 4 | 0~ 60 | 0.8Mpa | ±0.02 |
14 | LBT-AC-0300*110P2*2TMT | 2767 | 2526 | ≤300 | 35421 | 10*PT3/8 | 2 | 0~ 60 | 0.8Mpa | ±0.02 |
15 | LBT-AC-0300*18P2*2TMT | 2767 | 2526 | ≤300 | 35421 | 8*PT3/8 | 2 | 0~ 60 | 0.8Mpa | ±0.02 |
16 | LBT-AC-0300P4*2TMT | 2726 | 2526 | ≤300 | 35421 | / | 4 | 0~ 60 | 0.8Mpa | ±0.02 |
17 | LBT-AC-0400B1P4*2TMT | 3200 | 2526 | ≤400 | 35421 | 1*PT3/8 | 4 | 0~ 60 | 0.8Mpa | ±0.02 |
18 | LBT-AC-0500B1P8*2TMT | 3820 | 4037 | ≤500 | 43400 | 1*PT3/8 | 8 | 0~ 60 | 0.8Mpa | ±0.02 |
19 | LBT-AC-0700B1P8*2TMT | 5060 | 5000 | ≤700 | 68000 | 1*PT3/8 | 8 | 0~ 60 | 0.8Mpa | ±0.02 |
20 | LBT-AC-1350P6*2TMT | 6620 | 6100 | ≤1350 | 93000 | / | 6 | 0~ 60 | 0.8Mpa | ±0.02 |
21 | LBT-AC-2900P9*2TMT | 12600 | 11000 | ≤2900 | 110000 | / | 9 | 0~ 60 | 0.8Mpa | ±0.02 |
22 | LBT-AC-4000P9*2TMT | 16300 | 13900 | ≤4000 | 1900000 | / | 9 | 0~ 60 | 0.8Mpa | ±0.02 |
