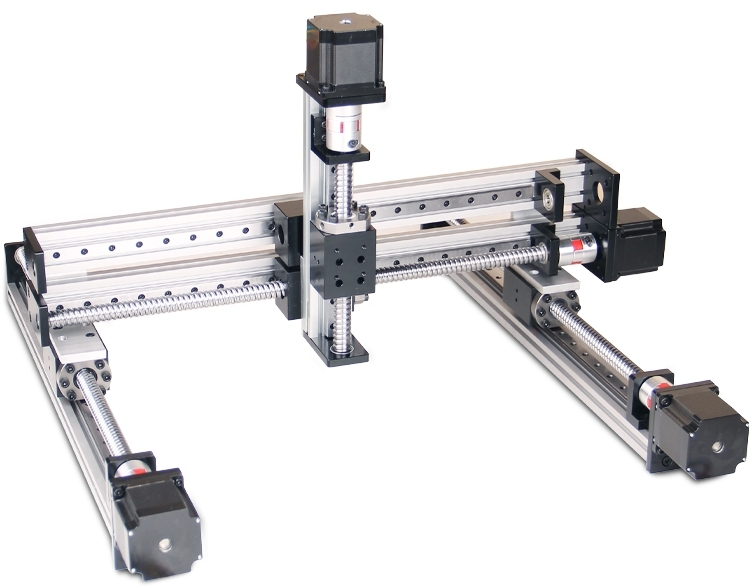

直线模组是一种专业化生产精密功能部件，是高集成的传动平台，又名直线滑台、线性滑台、电动缸、电动滑台、机械手臂、机械手等，可以通过各个单元的组合实现负载的直线运动，使轻负载的自动化更加灵活、定位更加精准。
Linear module is a specialized precision functional component, which is a highly integrated transmission platform. It is also known as linear slide, electric cylinder, electric slide, robotic arm, manipulator, etc. It can achieve linear motion of loads through the combination of various units, making the automation of light loads more flexible and precise in positioning.
型号 Type | 名称 Name | 水平承重Horizontal load-bearing capacity
| 垂直承重 Vertical load-bearing capacity | 速度范围 Speed range | 型材宽度 Profile width | 丝杆精度 Lead screw accuracy | 重复定位精度 Repeated positioning accuracy | 备注 Remarks |
FSL40-50 | 单线轨滑台模组 Single-rail linear slide module | 70Kg | 50Kg | 0-最大转速*螺距 0 - Maximum speed * pitch | 40mm | 0.03mm | 0.05mm | 无力臂，转速在100-200转每分钟情况下，精度在500mm以下，电机不丢步，无力臂情况下 No cantilever, with a speed of 100-200 rpm, the accuracy is less than 500mm, the motor does not lose steps, and there is no cantilever |
FSL40-100 | ||||||||
FSL40-200 | ||||||||
FSL40-300 | ||||||||
FSL40-500 | ||||||||
FSL40-800 | ||||||||
FSL40-1000 | ||||||||
FSL40-1200 | ||||||||
FSL40-1500 | ||||||||
LYX80-100 | 轻型双线轨滑台模组 Lightweight dual-rail linear slide module | 140Kg
| 100Kg | 80mm | ||||
LYX80-200 | ||||||||
LYX80-300 | ||||||||
LYX80-500 | ||||||||
LYX80-1000 | ||||||||
LYX80-1200 | ||||||||
LYX80-1500 | ||||||||
LYX80-2000 | ||||||||
LYX150-300 | 重型双线轨滑台模组 Heavy-duty dual-rail linear slide module | 800Kg | 300Kg | 150 | ||||
LYX150-500 | ||||||||
LYX150-800 | ||||||||
LYX150-1000 | ||||||||
LYX150-1500 | ||||||||
LYX150-2000 | ||||||||
LYX150-2500 | ||||||||
LYX150-3000 | ||||||||
LYX150-4000 | ||||||||
LYX150-5000 | ||||||||
LYX150-6000 |
