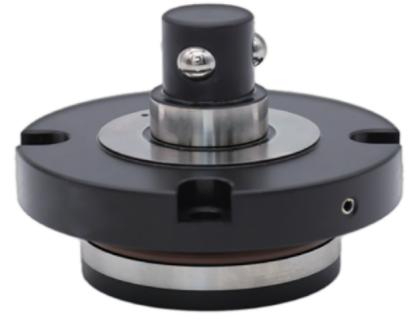

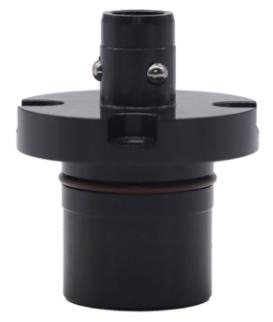

气动柔性定位器Pneumatic flexible positioner
（1）圆锥型气动柔性定位器
（1）Conical pneumatic flexible positioner
气压式锁紧，实现强大锁紧力。快速交换，缩减90%准备时间，重复定位精度≤0.01mm。
Pneumatic locking, achieving strong locking force. Rapid exchange, reducing 90% of preparation time, and with a repeated positioning accuracy of ≤0.01mm.
(1.1)圆锥型气动柔性定位器-定位销
(1.1) Cone-shaped pneumatic flexible positioner - positioning pin
型号Type | 夹紧力 Clamping force | A | B | C (g6) | H | H1
（±0.005） | H2 | D | E | F | G |
LBT-PF04-A-16A | 4KN | 16 | 32° | 48 | 52 | 14 | 15 | 16.5 | 60 | 6 | 70 |
LBT-PF04-A-20A | 6KN | 20 | 32° | 58 | 63 | 15 | 19 | 21 | 72 | 8 | 85 |
(1.2)圆锥型气动柔性定位器-定位套
(1.2) Cone-shaped pneumatic flexible positioner - positioning sleeve
型号Type | A | B | H | H1 | C | D | E | F | G | I |
LBT-PF04-A-16B | 28 | 27.5 | 23 | 8 | 50 | 5.5 | 60 | M5 | 50 | 9.5 |
LBT-PF04-A-20B | 36 | 35.5 | 29 | 10 | 62 | 6.6 | 75 | M6 | 62 | 11 |
（2）直柱型气动柔性定位器
（2）Straight column pneumatic flexible positioner
气压式锁紧，实现强大锁紧力。快速交换，缩减90%准备时间，重复定位精度≤0.02mm。
Pneumatic locking, achieving strong locking force. Rapid exchange, reducing 90% of preparation time, and with a repeated positioning accuracy of ≤0.02mm.
(2.1)直柱型气动柔性定位器-定位销
(2.1) Straight-column pneumatic flexible positioner - positioning pin
型号Type | 夹紧力 Clamping force | A | B | C (g6) | H | H1
（±0.005） | H2 | D | E | F | G |
LBT-PF04-B-16A | 4KN | 16 | 20 | 48 | 52 | 14 | 15 | 16.5 | 60 | 5.2 | 70 |
LBT-PF04-B-20A | 6KN | 20 | 26 | 58 | 63 | 15 | 19 | 21 | 72 | 6.5 | 85 |
(2.2)直柱型气动柔性定位器-定位套
(2.2) Straight-column pneumatic flexible positioner - positioning sleeve
型号Type | A | B | H | H1 | C | D | E | F | G | I |
LBT-PF04-B-16B | 28 | 27.5 | 23 | 8 | 50 | 5.5 | 60 | M5 | 50 | 9.5 |
LBT-PF04-B-20B | 36 | 35.5 | 29 | 10 | 62 | 6.6 | 75 | M6 | 62 | 11 |
（3）标准型气动柔性定位器
（3）Standard pneumatic flexible positioner
快速交换，准备时间减少90%,极高的可靠性，重复定位精度±0.02mm。
Quick exchange, preparation time reduced by 90%, extremely high reliability, repeat positioning accuracy ±0.02mm.
(3.1)标准型气动柔性定位器-定位销
(3.1) Standard pneumatic flexible positioner - positioning pin
型号Type | 夹紧力 Clamping force | A | B | C | D | E | F | G | H | I | J | L | M |
LBT-PF04-BZ-AA | 250N | 40 | 12 | 11.5 | 17 | 8 | 29.5 | 54.5 | 23.4 | 24 | 32 | 8 | 4.5 |
LBT-PF04-BZ-BA | 350N | 51 | 16 | 15.5 | 19 | 9.5 | 31.7 | 60.2 | 31.4 | 32 | 41 | 9.5 | 5.5 |
(3.2)标准型气动柔性定位器-定位套
(3.2) Standard pneumatic flexible positioner - positioning sleeve
型号Type | A | B | E | C | D | G | N | K | M |
LBT-PF04-BZ-AB | 20 | 19.6 | 36 | 10.5 | 8 | 8 | 4.5 | 28 | M4 |
LBT-PF04-BZ-BB | 25 | 22 | 44 | 10.8 | 9.5 | 9.5 | 5.5 | 34 | M5 |
